With the product families SIMATIC WinCC (TIA Portal), SIMATIC WinCC flexible and SIMATIC WinCC, SIMATIC HMI offers visualization and configuration software for the entire HMI spectrum:
	SIMATIC WinCC (TIA Portal) Creation of applications in the machine-level area and of process visualization or SCADA systems
	SIMATIC WinCC flexible Creation of applications in the machine-level area:
	SIMATIC WinCC Creation of process visualization or SCADA systems
	SIMATIC WinCC Open Architecture Creation of applications with a high demand for customerspecific adaptations, large and/or complex applications, as well as projects that demand special system requirements and functions

	TIA PORTAL VII ( HMI SOFTWARES )

SIMATIC WinCC (TIA Portal)

WinCC (TIA Portal) is based on the new central engineering framework Totally Integrated Automation Portal (TIA Portal), which provides users with an integrated, efficient and intuitive solution to all automation tasks. SIMATIC WinCC (TIA Portal) covers applications in the machinelevel area and applications in the process visualization or SCADA environment. WinCC (TIA Portal) offers the uniform and scalable configuration tools WinCC Basic, Comfort, Advanced and Professional for configuring the current SIMATIC HMI operator panels:
• SIMATIC Basic Panels
• SIMATIC Comfort Panels
• SIMATIC Mobile Panels
• SIMATIC Panels 77/177/277 series
• SIMATIC Multi Panels of the 177/277/377 series
• PC-based systems
- SIMATIC WinCC Runtime Advanced
- SIMATIC WinCC Runtime Professional
In addition, WinCC (TIA Portal) offers:
• Intuitive user interface with maximum degree of operator friendliness
• Clear configuration of devices and network topologies
• Shared data management and uniform symbols via controller and HMI
• Optimum interaction with the controller and HMI in a working environment
• Powerful editors for efficient engineering
• Integrated mass data operations for efficient configuration
• System diagnostics as an integral component
• Comprehensive library concept

SIMATIC WinCC (TIA Portal) engineering software

• Family of configuration systems with WinCC Basic, Comfort, Advanced and Professional for SIMATIC operator panels, as well as for the PC-based visualization systems WinCC Runtime Advanced and WinCC Runtime Professional

• Integrated family of engineering tools for configuring SIMATIC HMI operator panels, as well as for the PC-based visualization systems WinCC Runtime Advanced and WinCC Runtime Professional.
• WinCC (TIA Portal) is based on the new central engineering framework Totally Integrated Automation Portal (TIA Portal), which offers the user a uniform, efficient and intuitive solution to all automation tasks.
• WinCC (TIA Portal) also offers uniform engineering from the Basic Panel through to the SCADA application.
• Together with the STEP 7 (TIA Portal) products, WinCC (TIA Portal) forms the optimum solution for integrated, efficient engineering.

Current version:
• SIMATIC WinCC V11 Basic
• SIMATIC WinCC V11 Comfort
• SIMATIC WinCC V11 Advanced
• SIMATIC WinCC V11 Professional

SIMATIC WinCC in the editions Basic, Comfort, Advanced and Professional are innovative engineering tools for configuring SIMATIC HMI operator panels, as well as for the PC-based visualization systems WinCC Runtime Advanced and WinCC Runtime Professional.
Depending on the selected product, various target systems can be configured:
WinCC Basic
• Basic Panels
WinCC Comfort
• As WinCC Basic, plus:
• Comfort Panels
• Panels of the 70 series: OP 73, OP 77A, OP 77B
• Panels of the 170 series: TP 177A, TP 177B, OP 177B
• Panels of the 270 series: TP 277, OP 277
• Mobile Panels: Mobile Panel 177, Mobile Panel 277
• Multi Panels: MP 177, MP 277, MP 377
WinCC Advanced
• As WinCC Comfort, plus:
• SIMATIC PCs with WinCC Runtime Advanced:
- SIMATIC Panel PC: HMI IPC277D, Panel PC 477B, HMI IPC477C, Panel PC 577B, HMI IPC577C, Panel PC 677B, HMI IPC677C
- SIMATIC Box PC: IPC227D, Microbox PC 427B, IPC427C, Box PC 627B, IPC627C, Box PC 827B, IPC827C
- SIMATIC Rack PC: Rack PC 547B, IPC547C, Rack PC 647B, IPC647C, Rack PC 847B, IPC847C
- SIMATIC modular Embedded Controller: EC31
• Standard PC with WinCC Runtime Advanced
• SINUMERIK Panel PC: OP010, OP012, OP015, TP015, OP015A, TP015A
WinCC Professional
• As WinCC Advanced, plus:
• SIMATIC PCs with WinCC Runtime Professional:
- SIMATIC Panel PC: HMI IPC677C,
- SIMATIC Box PC: IPC627C, IPC827C
- SIMATIC Rack PC: IPC547C, IPC647C, IPC847C
• Standard PC with WinCC Runtime Professional

SIMATIC WinCC Runtime Advanced visualization software

• PC-based HMI solution for single-user systems directly at the
machine
• Basic package for visualization, reporting and logging, user administration, can be expanded flexibly with VB scripts
• Basic package expandable by means of option packages
• Integration of customer-specific ActiveX Controls created with WinCC ControlDevelopment
• Can be integrated into automation solutions based on TCP/IP networks

• Expanded service concepts with remote operation, diagnostics and administration over the Intranet and Internet in combination with e-mail communication

SIMATIC WinCC Runtime Advanced is available as a software package with 128, 512, 2048 or 4096 PowerTags. The term PowerTags is used exclusively to identify process variables and area pointers that have a process link to the controller. Variables without process link, constant limit values of variables, and messages (up to 4000 bit-triggered messages) are also available for additional system performance. The range of functions of WinCC Runtime Advanced includes the centralized HMI components for visualizing and reporting, and it can be expanded to suit requirements and costs by using optional
packages. SIMATIC WinCC Runtime Advanced is configured with the SIMATIC WinCC Advanced configuration software.

SIMATIC WinCC Runtime Advanced is the high-performance visualization software for simple, machine-oriented visualization tasks. It can be used as a single-user solution for all automation applications in production automation, process automation and building services automation. SIMATIC WinCC Runtime Advanced can be used in combination with the following operator panels:
• SIMATIC Panel PC: HMI IPC277D, Panel PC 477B, HMI IPC477C, Panel PC 577B, HMI IPC577C, Panel PC 677B, HMI IPC677C
• SIMATIC Box PC: IPC227D, Microbox PC 427B, IPC427C, Box PC 627B, IPC627C, Box PC 827B, IPC827C
• SIMATIC Rack PC: Rack PC 547B, IPC547C, Rack PC 647B, IPC647C, Rack PC 847B, IPC847C
• SIMATIC modular Embedded Controller: EC31
• SINUMERIK Panel PC: OP010, OP012, OP015, TP015, OP015A, TP015A
• Standard PCs with resolutions (W x H in pixels) of:
- 4:3 format: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
- Widescreen format: 1440 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200

SIMATIC WinCC Runtime Professional visualization software

• PC-based operator control and monitoring system for visualization and operator control of processes, production flows, machines and plants in all sectors – from the simple single-user station through to distributed multi-user systems
and cross-location solutions with web clients. WinCC Runtime Professional is the information hub for corporation-wide vertical integration.

• Industry-standard functions for signaling and acknowledging events, archiving of messages and measured values, logging of all process and configuration data, user administration, can be expanded flexibly with VB and C scripts
• Basic package expandable by means of option packages
• Also included are APIs for the Runtime to utilize the open programming interfaces
• Integration of customer-specific ActiveX Controls created with WinCC ControlDevelopment

SIMATIC WinCC Runtime Professional is available as a software package with 128, 512, 2048, 4096, 8192, 65536 PowerTags. PowerTags are data points that are connected to controllers or other data sources via a WinCC Runtime Professional channel. Up to 32 alarms can be obtained from one data point. Moreover, internal tags without coupling are available for additional system performance. WinCC Runtime Professional also contains 500 archive tags. Additional archive licenses can be obtained for greater quantity structures.

SIMATIC WinCC Runtime Professional is designed for visualization and operation of processes, manufacturing cycles, machines and plants. With its powerful process interface, especially to the SIMATIC family, and the secure data logging, WinCC Runtime Professional enables solutions for the process control. The sector-neutral basic system enables universal usage in all automation applications. SIMATIC WinCC Runtime Professional can be used in combination with the following operator panels:
SIMATIC PCs:
• SIMATIC Panel PC: HMI IPC677C,
• SIMATIC Box PC: IPC627C, IPC827C
• SIMATIC Rack PC: IPC547C, IPC647C, IPC847C
• Standard PC

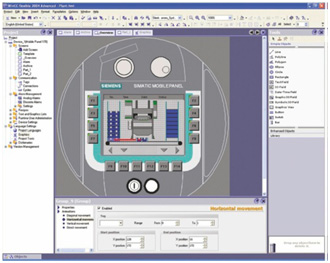

SIMATIC WinCC flexible

Covers applications in the machine-level area. WinCC flexible offers the integrated and scalable configuration tools WinCC flexible Micro, Compact, Standard and Advanced for configuring SIMATIC HMI operator panels:
• SIMATIC Basic Panels
• SIMATIC Mobile Panels
• SIMATIC Micro Panels
• SIMATIC Panels of the 70/170/270 series as well as C7-635 and C7-636
• SIMATIC Multi Panels of the 170/270/370 series

• PC-based systems
- SIMATIC WinCC flexible Runtime
• Runs under Windows XP Professional / Windows 7 Professional, Ultimate, Enterprise
• Expanded integration into STEP 7 and SIMOTION
• Optionally expandable with functions for version administration and logging changes (WinCC flexible /ChangeControl)
• Modular PC-based HMI solution for single-user systems directly at the machine level
• Basic package for visualization, reporting and logging; can be expanded by implementing option packages
• Flexible expansion possible with VB scripts and customized ActiveX controls created with OPP (Open Platform Program)
• Uniform family of engineering tools for configuration of SIMATIC HMI operator panels, the operator control part of SIMATIC C7 units, SIMOTION/SINUMERIK Panel PCs as well as the PC-based visualization software WinCC flexible Runtime.
• Runs under Windows XP Professional / Windows 7 Professional, Ultimate, Enterprise
• Current version:
- SIMATIC WinCC flexible 2008 Service Pack 2 Advanced
- SIMATIC WinCC flexible 2008 Service Pack 2 Standard
- SIMATIC WinCC flexible 2008 Service Pack 2 Compact
- SIMATIC WinCC flexible 2008 Service Pack 2 Micro

SIMATIC WinCC flexible Micro/Compact/Standard/Advanced are innovative engineering tools for configuration SIMATIC HMI operator panels, the operating component of SIMATIC C7 devices, the SIMOTION/SINUMERIK Panel PCs, and the PCbased visualization system WinCC flexible Runtime.
Depending on the selected product, various target systems can be configured:
WinCC flexible Micro
• Micro Panels: OP 73micro, TP 170micro, TP 177micro
WinCC flexible Compact
In addition to the target systems that are configured using
WinCC flexible Micro:
• Mobile Panels: Mobile Panel 170, Mobile Panel 177
• Basic Panels: KTP400 Basic, KTP600 Basic, KTP1000 Basic, TP1500 Basic
• 70 series Panels: OP 73, OP 77A, OP 77B
• 170 series Panels: TP 170A, TP 177A, TP 170B, TP 177B, OP 170B, OP 177B
• 170 series Multi Panels: MP 177
• C7 devices: C7-635 (Touch/Key)
WinCC flexible Standard
In addition to the target systems that are configured using WinCC flexible Compact:
• Mobile Panels: Mobile Panel 277
• 270 series Panels: TP 270, TP 277, OP 270, OP 277
• 270 series Multi Panels: MP 270B, MP 277
• 370 series Multi Panels: MP 370, MP 377
• C7 devices: C7-636 (Touch/Key)
WinCC flexible Advanced
In addition to the target systems that are configured using WinCC flexible Standard:
• Standard PC
• SIMATIC Panel PC: Panel PC IL 70, Panel PC IL 77, Panel PC 477/477B, Panel PC 577/577B, Panel PC 670, Panel PC 677/677B, Panel PC 870, Panel PC 877
• SIMOTION Panel PC: P012K, P012T, P015K, P015T, PCR, PCR-Touch
• SINUMERIK Panel PC: HT8, OP08T, OP010, OP012, TP012, OP015, TP015, OP015A

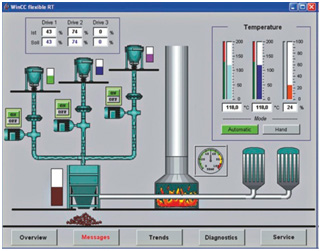

WinCC flexible RT

PC-based visualization software for single-user systems directly at the machine.
• Runs under Windows XP Professional and Windows 7 Professional, Ultimate, Enterprise
• Current version: SIMATIC WinCC flexible 2008 Runtime with Service Pack 2
SIMATIC WinCC flexible Runtime is configured with the SIMATIC WinCC flexible Advanced configuration software.

SIMATIC WinCC flexible Runtime is the high-performance visualization software for simple visualization tasks at machine level. It can be used as a single-user solution for all automation applications in manufacturing automation, process automation and building services automation. SIMATIC WinCC flexible Runtime can be used in combination with the following operator panels:
• SIMATIC Panel PCs
- PC IL 70/77
- Microbox 420
- Panel PC 477
- Panel PC 577
- Panel PC 670/677
- Panel PC 870/877
• SIMOTION Panel PCs
- P012, P015
- PCR, PCR-Touch
• SINUMERIK Panel PCs
- HT8; OP08T
- OP010, OP012, OP015
- TP012, TP015, OP015A
• Standard PCs with resolutions (W x H in pixels) of:
- 4:3 format: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200
- Widescreen format: 1440 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200

SIMATIC WinCC flexible Runtime is available as a software package with 128, 512, 2048 or 4096 PowerTags. The term PowerTags is used exclusively to identify process variables and range pointers that have a process link to the controller. Variables without process link, constant limit values of variables, and messages (up to 4000 bit-triggered messages) are also available for additional system performance. The range of functions of WinCC flexible Runtime includes the centralized HMI components for visualizing and reporting, and it can be expanded to suit requirements and costs by using optional packages. SIMATIC WinCC flexible Runtime is configured with the SIMATIC WinCC flexible Advanced configuration software.

SIMATIC WinCC

The process visualization or SCADA system for visualizing and operating processes, production flows, machines and plants in all sectors – from the simple single-user station through to distributed multi-user systems with redundant servers and cross-location solutions with web clients. WinCC is the information hub for company-wide, vertical integration (process visualization and platform for IT & business integration).
• For universal use thanks to solutions for all sectors, e.g. conforming to FDA 21 CFR Part 11, and multiple languages for worldwide use
• All HMI functions on-board with industry-standard functions for signaling and acknowledging events, archiving of messages and measured values, logging of all process and configuration data, user administration and visualization (WinCC basic software)
• Company-wide, flexible client/server structures with operator stations on the Web, distributed servers and data integrity thanks to redundancy
• Easy to integrate over standard interfaces such as OPC (OLE for Process Control), WinCC OLE-DB, VBA (Visual Basic for Applications), VB script, C-API (ODK)
• Integration platform in the company thanks to the Historian functionality integrated into WinCC based on the Microsoft SQL Server, standard and programming interfaces and tools and clients for evaluation
• Modular expansion with options and add-ons as well as individual function expansions with VB Script, Visual Basic for Applications, C-API (ODK) and integration of ActiveX Elements

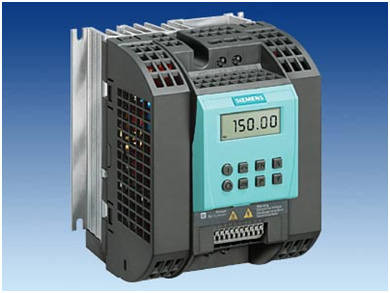

	G110

	G120

The Modular Single-motor Drives for Small and Medium Power Ratings in a Central or Distributed DesignThe SINAMICS G120 frequency inverter for the 0.37 to 250 kW output range has a modular structure and is equipped with a multitude of new functions, setting a new standard in safety, communication capability and energy recovery for general performance inverters.
The low voltage inverters SINAMICS G110D and SINAMICS G120D have been specifically designed to address conveyor technology applications in the industrial enviroment. They are characterized by their very flat type of construction, a uniform footprint and high degree of uniformity for power outputs from 750 W to 7.5 kW.

SINAMICS G120 range
The SINAMICS G120 inverter has been designed for the accurate and efficient control of the
speed and torque for three-phase motors. The SINAMICS G120 system comprises two basic
modules, the Control Unit (CU) and the Power Module (PM).
The Control Units are divided into the following:
● CU without fail-safe functions
– CU230P-2 HVAC for pump and fan applications with Modbus RTU interface
– CU230P-2 CAN for pump and fan applications with CANopen interface
– CU230P-2 DP for pump and fan applications with PROFIBUS DP interface
– CU240E economic version of the CU240 Control Units (e.g. less terminals, no
encoder interface)
– CU240S standard version of the CU240 Control Units
– CU240S DP like CU240S plus PROFIBUS DP interface (PROFIdrive Profile V4.1)
– CU240S PN like CU240S plus PROFINET interface (PROFIdrive Profile V4.1)
● CU with fail-safe functions
– CU240S DP-F like CU240S DP plus integrated fail-safe functions
– CU240S PN-F like CU240S PN plus integrated fail-safe functions
The Power Modules differ concerning the supply voltage and the way of realizing the motor
braking function:
● PM240 Power Module with resistor braking and dc braking functions, supply voltage
3 AC 400 V
● PM250 Power Module with regenerative braking function, supply voltage 3 AC 400 V
● PM260 Power Module with regenerative braking function, supply voltage 3 AC 690 V
Control Units and Power Modules are allowed to be combined in any possible configuration.

	MM44X

We offer Low Voltage Frequency Inverters with the brand name "MICROMASTER". The family ofMICROMASTER frequency inverters address drive applications in the power range extending from 0.12 kW up to 250 kW. From simple applications with voltage-frequency control (V/f control) or complex applications with closed-loop vector control and encoder feedback.
You need a frequency inverter which can be adapted to your individual requirements without any great effort? No problem for our MICROMASTER- the universal inverter for 3-phase networks and optional field-bus connection.

Thanks to its modular design, the extensive standard functions can be supplemented with a wide variety of options. And you do not even need tools, as the operator panels and the communications modules can be simply plugged in. Screwless control terminals - as with the rest of the family - make terminal connection child's play.
Typical Uses : Conveyor systems, material transport, pumps, fans, mechanical engineering.

	DC DRIVE :

We are offering Simoreg DC Master -6RA70 which offers top performance and intelligence along with innovative features. These features give well proven DC technology a new lease of life.
There are applications, where DC drives are simply the better drive solution, reason enough for the innovation of DC drives. This is because, depending on the application, DC drives have advantages such as:

• Operator-friendliness
• Reliability
• Cost-effectiveness
• Operating characteristics
• Efficiency and start-up

It is considered to be the system for all applications. With SIMOREG DC-MASTER, the applications are limitless. The functions, the wide output- and voltage range as well as the unified operator control philosophy provide optimum solutions for an extremely wide range of applications in all industrial segments. SIMOREG DC-MASTER always provides top performance and intelligence, irrespective of whether they are used to supply DC motors or for special applications.

Motors, the muscles of the DC system

SIMOREG DC-MASTER and our motors form an ideal team. Compact Siemens DC motors prove themselves in every application worldwide, where favorably-priced drive technology and highest availability are demanded. These are rugged, have a long lifetime and a high output yield of 0.7 kW to 1550 kW. These motors are available in various combinations of design such as self-ventilated or force-ventilated, with or without fan, in degrees of protection IP 23, IP 54 or IP 55. However, this isn’t enough, our DC motors can be integrated into the automation environment through the motor interface for continuous monitoring, precise diagnostics, effective maintenance and service.

SIMOREG DC-MASTER -the new family

The innovative SIMOREG DC-MASTER product family provides the optimum results for highly-complex drive applications as well as for standard solutions. These have extremely fast control characteristics and their current-and torque rise times are less than 10 ms. This also applies over an output range of 6.3 KW to 2000 KW, for armature and field supplies, as single or four-quadrant drive.

SIMOREG DC-MASTER -the innovations
• The output range has been extended up to 10.000 A
• Input voltages from 400 V to 830 V
• Can be fully integrated into any automation environment
• Extremely quick and simple start-up
• Modular through and through
• The standard version can be expanded to handle high-performance solutions
• Extremely simple operator control using a unified operator control philosophy

	S110

Our range of Sinamics S110 servo drive provides precise positioning with its innovative plug-and-play functionality. It has been designed to accomplish positioning tasks as quickly and simply as possible. The SINAMICS S110 servo drive includes integrated positioning functions for servo as well as induction motors. As a modular single-axis drive, it covers a wide power range from 0.12 kW to 90kW in a compact design.
In addition, flexible control is provided by onboard I/O or selectable communication interfaces. The built-in positioner provides 16 traversing task or position following capabilities for integration with a higher-level controller.

Point to-point positioning can be accomplished with relative or absolute moves along with traversing profiles and position changes on the fly. The positioning tasks are programmed in the graphics-based STARTER software for simple configuration of motion tasks without the need for G-code programming. Furthermore, a comprehensive set of safety functions are available via on-board safety terminals. The Sinamics S110 Single Axis Drive is known to have the following key attributes:

• Ease-of-use
• Convenient commissioning with start-up wizard and graphical user interface
• Plug-and-play parameterization with DRIVE-CLIQ motors
• Automatic tuning
• Flexible operation
• Operates servo and induction motors
• Modular drive concept
• Free function blocks for customization
• Cost-effective
• Built-in safety functions
• On-board positioning
• Global support and certifications

The Sinamics S110 Single Axis Drive is available in the following technical specifications:

Sinamics S110 Technical Data:

Voltage and performance ranges 0	12 - 0.75 kW at 1-ph, 200...240V AC 0.37 - 90 kW at 3-ph, 380...480V AC
Open-loop/closed-loop control	control Servo control (speed, position)

	S120

Modular system for sophisticated drive tasks
SINAMICS S120 solves complex drive tasks for a wide range of industrial applications and is, therefore, designed as a modular system. Users can choose from many different harmonized components and functions to create a solution that best meets their requirements. SIZER, a high-performance engineering tool, makes it easier to choose and determine the optimum drive configuration. SINAMICS S120 is supplemented by a wide range of motors. Whether synchronous or asynchronous, all motor types are supported by
SINAMICS S120.

Particularly suitable for multi-axis applications
Coordinated drives that carry out drive tasks together are used in many mechanical and plant engineering applications. including running gears in gantry cranes, stretching systems in the textile industry, or paper machines and rolling mills. These require drives with a connected DC link, which allows cost-saving energy balancing between braking and driving axes. SINAMICS S120 features Line Modules (infeed modules) and Motor Modules (inverter modules) covering a wide power range which, having been designed for seamless integration, pave the way for compact multi-axis drive configurations.

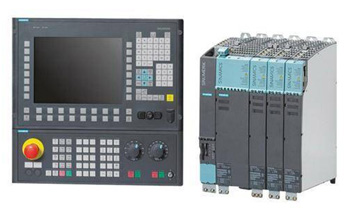

	840D SL

	840D

SINUMERIK CNC family

SINUMERIK is the perfect automation system for machine tools.
From the workshop production to mass production - SINUMERIK always offers the right product.

The digital NC system for complex tasks

SINUMERIK 840D

The digital system for almost any application with a modular design, the customer requests quickly makes feasible.

With the SINUMERIK 840D, you decide on a CNC control, the world in many technologies and in large numbers in use.

With the SINUMERIK 840D set
• at the highest levels of performance and flexibility
• especially for complex multi-systems
• Openness to continuous
• from operation until the NC-core
• certified integrated safety functions
• for man and machine: SINUMERIK Safety Integrated
